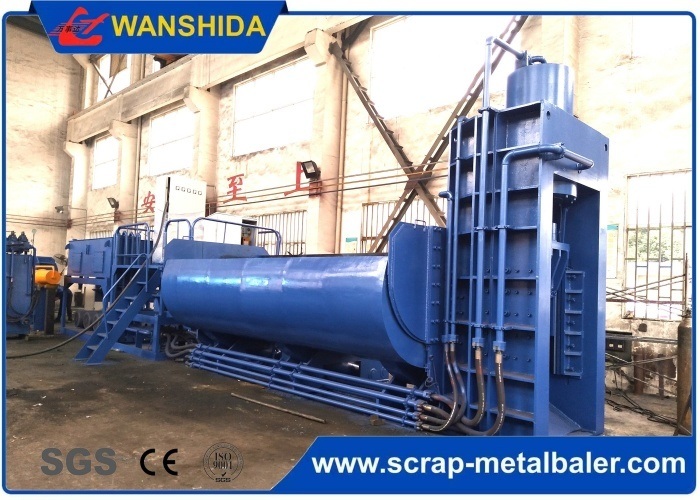

The Y83Q-4000C 400 ton metal baler shear is designed for scrap metal processing operations that need compression and cutting in one machine. It is suitable for scrap yards, recycling plants, and ferrous scrap handling facilities that want to reduce loose metal scrap into compact bale sections and then cut the material into manageable output lengths for easier storage, transfer, and downstream recycling.
Compared with a standard baler, a baler shear combines two working functions in one machine. It first compresses loose scrap inside the press room and then applies shearing force to reduce the material into more practical output size. This integrated process helps improve handling efficiency and reduces the need for separate baling and cutting equipment in the same line.
The Y83Q-4000C uses 4000 kN cutting force, 3200 kN left cylinder force, and 3200 kN right cylinder force, supported by a 5000 × 1350 × 680 mm compress room. The bale section is 460 × 460 mm, with bale length adjustable within 300–700 mm. With 2–3 cutting cycles per minute, 74 kW installed power, and PLC automatic control, this model is suitable for medium-to-heavy scrap metal processing tasks where compacted output and controlled cutting are both required.
The Y83Q-4000C is best positioned as a 400 ton metal baler shear for integrated scrap compression and cutting. It is suitable for:
This model is more suitable for buyers who want a combined baling and shearing solution than for those looking for a baler-only or shear-only machine.
This model is generally suitable for:
Because this machine combines baling and cutting, it is especially suitable for scrap that is loose before feeding but still needs controlled output size after compression.
Suitable for scrap yards that need to compress and cut metal scrap in one machine to improve storage, loading, and yard organization.
Suitable for recycling plants that want to simplify scrap preparation by combining bale formation and cutting in one workflow.
Loose scrap often occupies too much loading space. This model helps reduce volume through compression and then controls output length for easier transport.
With 4000 kN cutting force and a large 5000 mm compress room length, this model is suitable for medium-to-heavy scrap handling where both compaction and cutting are needed.
| Parameter | Value |
|---|---|
| Model | Y83Q-4000C |
| Machine Type | Metal Baler Shear |
| Cutting Force | 4000 kN |
| Left Cylinder Force | 3200 kN |
| Right Cylinder Force | 3200 kN |
| Compress Room Size (L × W × H) | 5000 × 1350 × 680 mm |
| Bale Dimension (W × H) | 460 × 460 mm |
| Bale Length | 300–700 mm |
| Cutting Speed | 2–3 times/min |
| Power | 74 kW |
| Operation | PLC automatic control |
The main advantage of this model is that it integrates baling and shearing in one system, helping reduce equipment duplication in scrap processing.
The machine uses 4000 kN cutting force, providing practical cutting capability for compacted scrap output.
The 5000 × 1350 × 680 mm compress room gives the machine a practical working chamber for loading and compressing loose scrap before cutting.
The bale section size of 460 × 460 mm helps produce more regular and manageable output for storage and transport.
PLC automatic control supports more stable and repeatable daily operation, especially in continuous scrap handling work.
Loose metal scrap is loaded into the compress room for preparation.
The machine compresses the scrap inside the chamber to form a more compact bale section.
The compressed material is formed into a bale section of 460 × 460 mm, with output length controlled in the 300–700 mm range.
After compression, the machine applies 4000 kN cutting force to shear the output into more manageable lengths.
The processed material can then be stored, loaded, transferred, or prepared for downstream recycling and melting.
It combines scrap compression and cutting in one machine, helping reduce loose metal volume and control output size in a single workflow.
The bale section is 460 × 460 mm.
The bale length is 300–700 mm.
The machine runs at 2–3 times per minute.
Yes. The machine uses PLC automatic control.
Jiangsu Wanshida Hydraulic Machinery Co., Ltd. can provide support for equipment selection, technical confirmation, production follow-up, testing before delivery, and installation guidance. Before final confirmation, buyers should provide scrap type, feeding conditions, and expected output requirements so the recommended baler shear configuration matches actual processing needs.
If you are looking for a 400 ton metal baler shear with PLC automatic control, send us your scrap type, feeding size, and output requirement. We will recommend a suitable integrated baling and cutting solution based on your actual working conditions.
